What The Hull


 In 2003, someone gave me a 1970's vintage 14' Hobie Catamaran...Orange hulls in good shape, but with quite a bit of oxidization on them...The guy who gave it to me hadn't used it in years...It had been sitting on a beach, on a lake here in Washington State...

Another  guy  GAVE me his 1990 15 hp Johnson two stroke...

With no specific plan and uncertain expectations, my catamaran conversion was underway... I dismantled the catamaran, removed anything required to sail it and set about cleaning the hulls...That involved wet sanding and removing silicone caulking in places it didn't need to be...

The trampoline replacement was next...  My plan was to do a deck composite of 1/2" x 1.25" cedar and 1/2" foam...run lengthwise and epoxy / glass over and under...The deck would have the natural arch that Hobie's have at the front crossbar... A design element that wasn't my preference, but something that would require a lot of effort and money to change...


(Above) The tramp replacement sub-frame...It's mostly a high grade 1/2" marine ply...Drilled out to reduce weight, yet still retain strength...12#

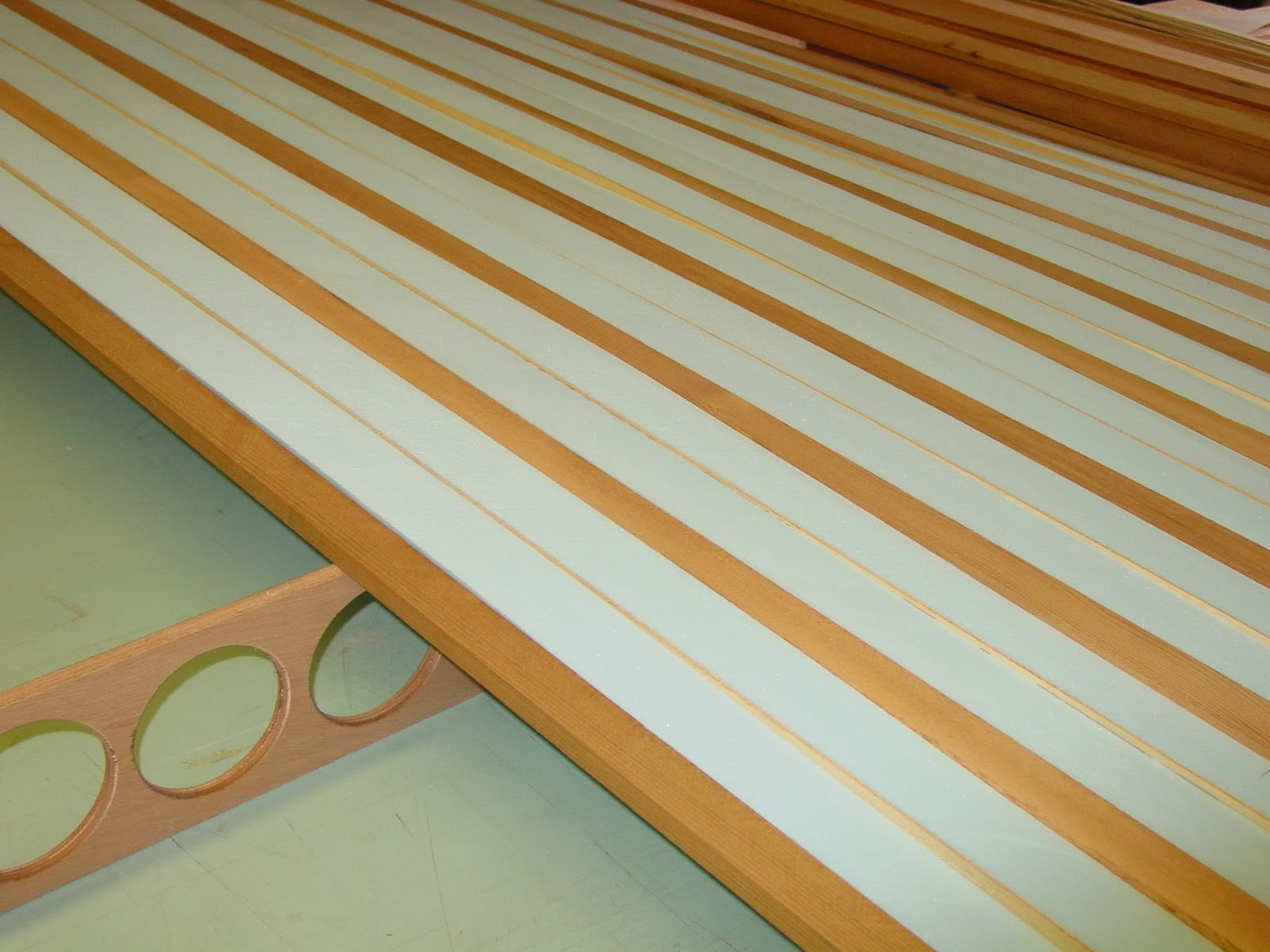

(Above) Here's what used as the deck...It's mostly 1/2' blue Styrofoam, with 1/8" lauan plywood "stringers" between, with 1/2" cedar thrown in... The 8' x 8' unglassed deck weighs 20 #...



(Above) The deck is laminated with 9 oz. Volan and epoxy resin...Next step was to trim the edges and cut a rounded nose...

(Above) This is the underside of the tramp replacement...The framework is 1/2" high grade marine plywood with some cedar web braces...You can see the chalk line that marks the rounded nose...I used my 5'10" fish template for the curve...  The framework is bonded to the deck with high strength construction adhesive...I coved it and glassed on a layer strip of 9 oz. volan / epoxy...



I wanted the tramp replacement to offer some wind and spray protection..
(Above) So I built a "cabin" in front with Styrofoam... Styrofoam  is so easy to work with, and cheap too...It cuts easily with a knife, shapes with sandpaper...To hold the seams together I used Liquid Nails Heavy Duty Construction Adhesive...It sets up pretty fast, and after a day it can be sanded...Once the pieces are set, it's ready to be fiberglassed...Styrofoam must be glassed with epoxy resin, at least to laminate...Polyester resin will melt the foam...Your sanding coats can be polyester...It takes epoxy a week or so to fully harden, but I'm using less glass than I thought I would...Structurally, I'm surprised how rigid it is, considering it's light weight...
 After I took those picture I decided to cut a curve in the top side rail...I used my 8' egg template for the curve...Making the curves and lines come together  was harder than I thought...

(Above) The front is now together...The joints have been rounded and it's laminated...The interior sides have been built out and rounded (like a surfboard rail)...The front arch is attached and ready to be sanded, then glassed...


Back on the boat design ...
From what I've heard, the catamaran set-up needs refinement for it to achieve it's full potential...The recurring "problem" seems to be the motor just hanging in the rear...My solution was in my back yard...For years I've had a 15'9" fiberglass square end canoe...If I could figure a way to have that be the motor mount, and if I could figure a way for it to connect to the catamaran, I might be on the road to a better boat...
So, I'm going to make it a Tri-maran...The canoe will solve some issues as well as present a few smaller challenges...It looks very promising overall...I put the catamaran together in the backyard and placed the canoe roughly where it might end up...

(Above) The canoe is between the cat hulls...I like how the lines all work together...I think it'll get up and plane pretty easy...One benefit of adding the canoe is capacity... The catamarans weight capacity is 500#...The canoe's capacity is 1,085 #...

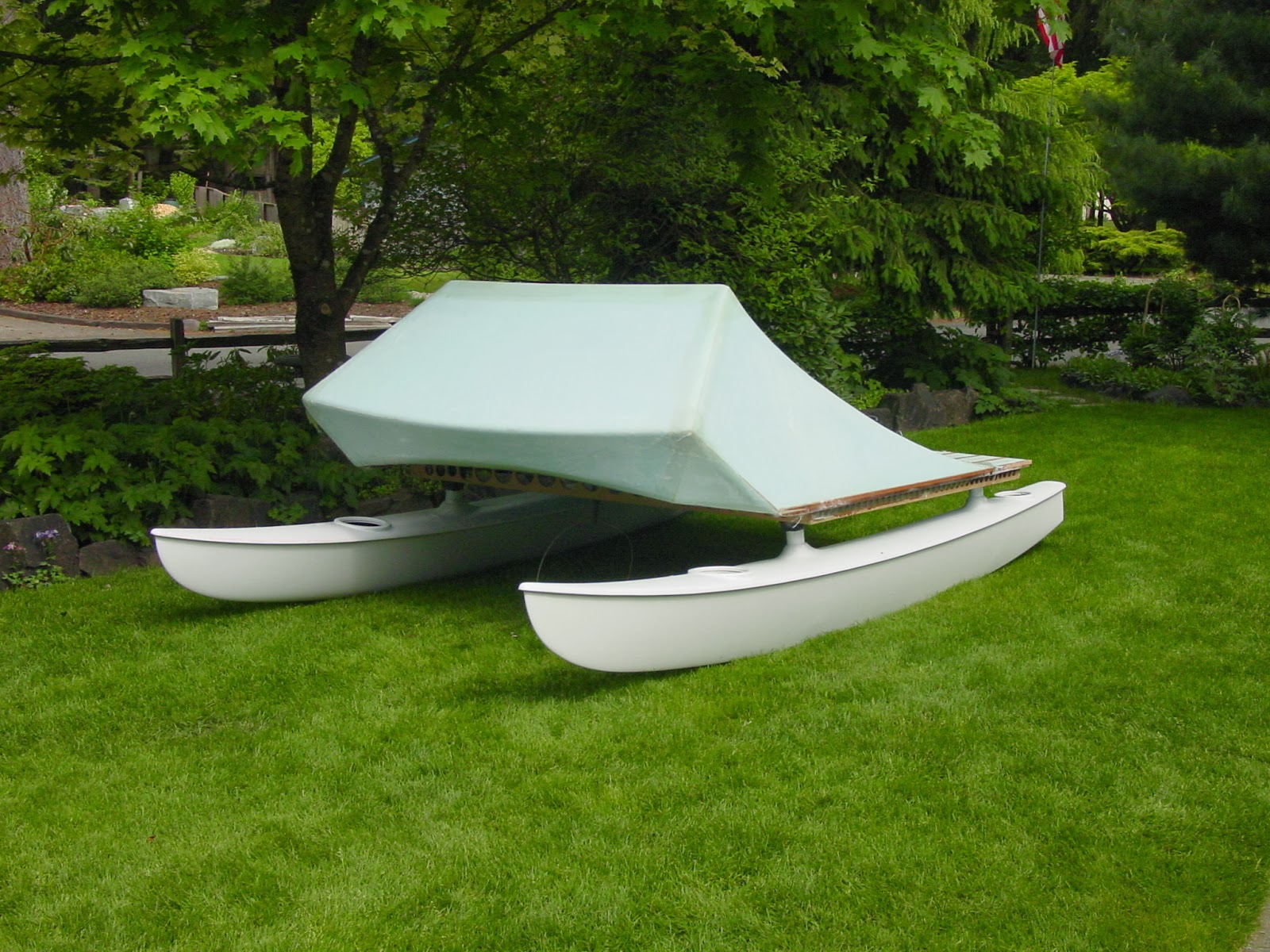

(Above) The fiberglass top 'THING' started off as a necessarily of design, based upon Vic's pictures...   When I started, the canoe wasn't part of the equation...   Since the canoe has  been incorporated,  I now have even more flexibility in potential usage...Fully covered, it'll withstand any rainstorm...Oh, the possibilities...


(Above) I'm made fixed bulkheads out of 1/2" marine plywood to connect the cat's crossbars to the canoe...I'm going to have some aluminum brackets made that'll be welded to the crossbars and be able to bolt to the plywood risers coming out of the canoe...At the ends are deck covers  for the canoe, to keep water from entering the "hold"...On the bow is a "hatch to allow access to the front...It's a Heavy Duty Garbage Can, that's been cut...I sawed the top 3" from the barrel, and epoxied / fiberglassed it in place...The lid snaps tight...This creative stuff is fun...!!!...


(Above) The cat hulls are fully painted, the canoe hull / deck is 95% done...The crossbars are finally ready to be picked up from the welding shop ...I still have the motor / tank mounting to do, but it's getting a lot closed to water testing...
I'll run it for a while without the "deck" on...That will take at least a couple of weeks for me to finish glassing and painting...Whew, it's a lot of work...
The crossbars and mounting brackets will be painted yellow.....Interlux Brightside Polyurethane...A hard, high gloss, single-part polyurethane...Available at any boat store...   Applied with a thin foam roller, then "tipped off" with a good paintbrush...


(Above) Check out the 1/4" thick aluminum crossbar brackets w/ gussets...

(Above) The deck lines  seem like they were made for each other... Balanced... I'm really stoked how it's all come together...




The much-anticipated launch...
(Above) Mid-afternoon I hooked the trailer to the van and headed to Pattison Lake...At the boat launch it was completely empty...There was a 15 kt. wind out of the west...I unhooked the lights, loosened the straps and put the trailer in over the tires...The hull slipped off real easy...I pushed the boat into the weeds and parked the trailer...The motor started easy, I pushed off, jumped on and soon I was just cruising along at a nice, faster than walking speed...Very smooth...I hooked up the tiller extension, and was pleasantly surprised how easy it worked...Good speed control and accurate steering...

(Above) I'll use a tiller extension on the outboard... The extension of course is modified...It's a u-joint set-up built for outboards...But the stock stick was too short for my purposes...So, I got a heavy duty painter's extension pole that has a treaded end that goes into a paint roller... I cut off the u-joint thing and epoxied the threaded end thing into that...The painter's pole has a well thought out one push of a button quick disconnect...It's a hex fitting so it won't spin...Very easy to set up and use...I'll be fine with it until I set up a real throttle / steering wheel set-up this winter...

(Above)  The underside of the deck... You can see the access hatch cutout and framing... The opening is 22" x 26"... Using the time honored method of computing capacity, using an abacus and verifying it with a slide rule, my calculation confirm with mathematical certainty that there will be 29.5387 cubic feet of storage capacity under the main deck... The Bow will hold the 14 gallon fuel cell and be home to the anchor...The stern will hold the life jackets / safety gear, leaving the center section for folding chairs, towels/wetsuits, food/drink, etc...


(Above) I mostly just cruised the lake, but I opened up the throttle a few times, not top speed yet, but enough to get a sense of what the motor will do...I'll be fine with it for the foreseeable future...
One thing that became apparent was, at speed the water coming off the canoe hull is directed at the catamaran hulls...It rebounds off those and unless I build the "side walls" higher, I might have water coming into the canoe...I had planned to do that, even before the test ride, but it's now higher on the priority list...
The balance of weight is fine...Super stable, and once I permanently mount a 14 gallon tank in the bow, it should be perfect...

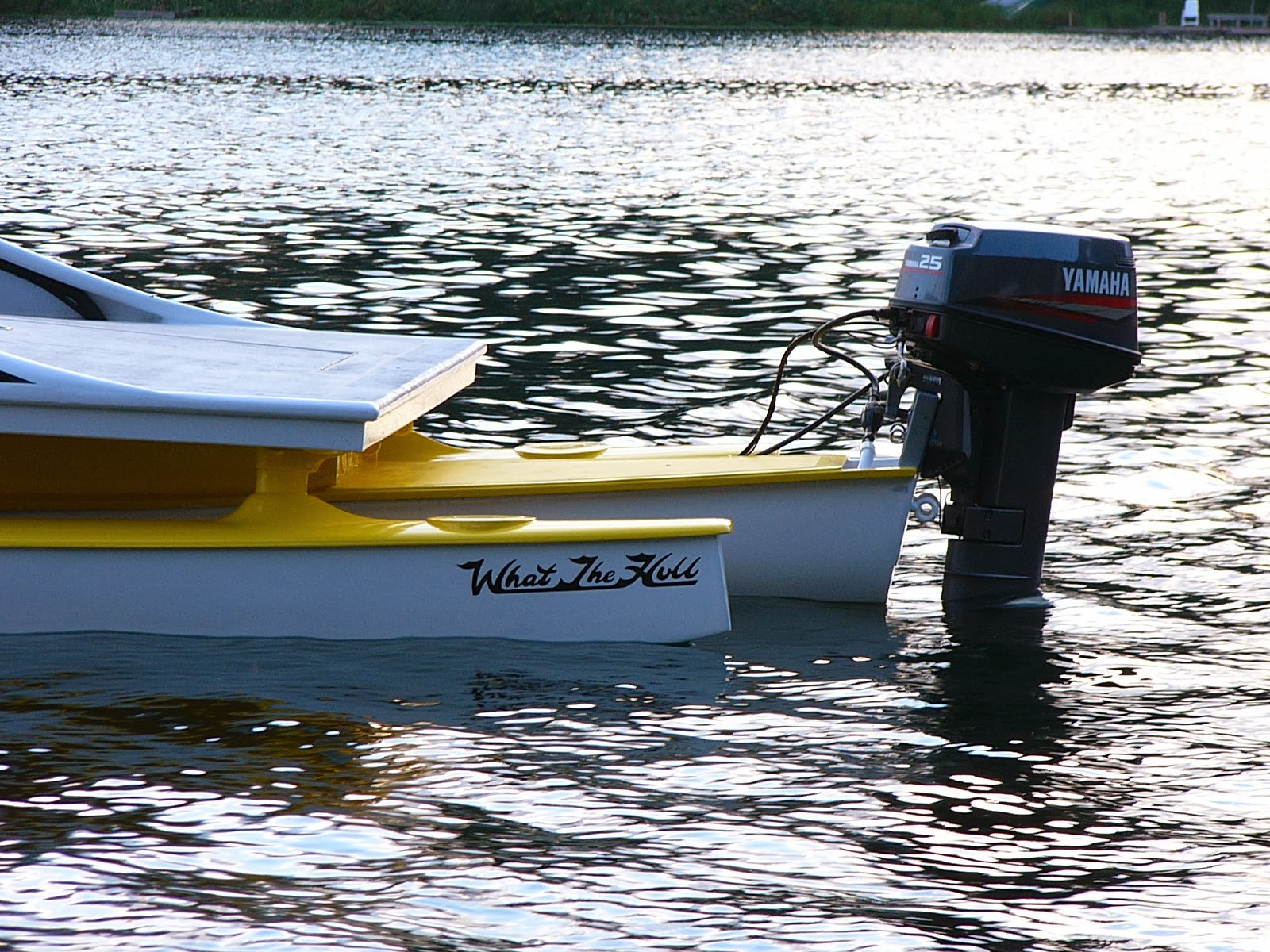

(above)  I built a 4.5" extension for the transom...Multiple layers of marine plywood, sanded, routered and painted white...Through bolts hold it solid...In addition, I got a "Sting Ray Hydro Foil Jr." for the cavitation plate...Finally, I moved the pin that adjusts the motor angle all the way forward...

(Above)  You can see the relationship of the bottom to the prop....In use it works superb...I think that raising the motor made the biggest difference...The bow stayed down and the stern rose perfectly, even at the slowest speeds...I think I was  getting much lift out of the tail though because of the way it flairs up and has a keel built into it. The water exits smoothly but that shape doesn't do anything for the planning characteristics of the craft. I think the "Hydro Foil" on the motor overcomes the natural tendency for the tail to sink...At speed, the water exits the rear co cleanly...
I went from stoked to"YEAH BABY"when I first gave the throttle a real twist...This excursion had me holding onto my hat...I'm estimating that I was cruising at about 15- 20 mph...Problem solved...

(Above) Here's the 14 gallon fuel cell installed in the bow...I'm using about a quarter gallon an hour cruising the lake ...Can you say " All day cruising"...???...I knew you could...

(Above)  Looking into the "hold" towards the bow...I enlarged the opening to the bow and stern, now that the deck is fully enclosed and watertight at the gunwale level...You can see the fuel cell up there...

(Above)  Looking into the stern...That's my folding chair sticking out...
























Oh, by the way, the name of the boat is:
...???...What The Hull...???...


This project was full of all the stuff I love...Facing design issues and coming up with solutions that are beyond common...
